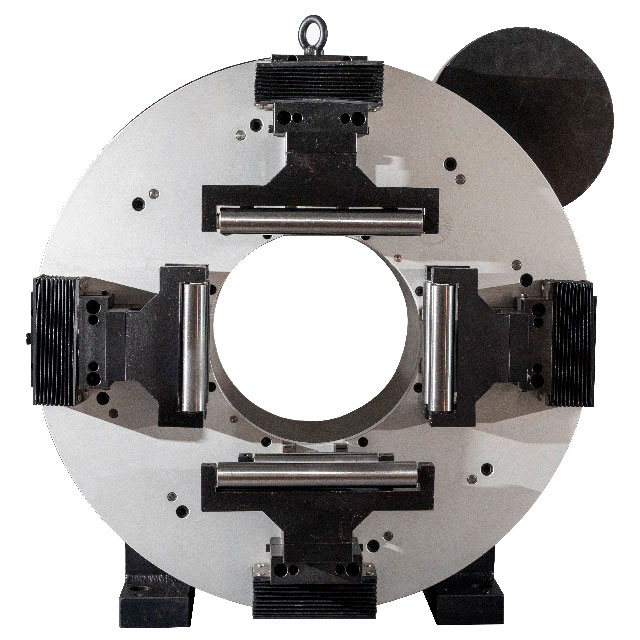

特 點
Characteristics
優質合金鋁板盤面
High quality alloy aluminum plate
全封閉結構
Fully enclosed structure
齒環式同步裝置
Gear ring synchronous device
交叉式雙滾軸
Cross type double rollers
主要參數 Main parameters

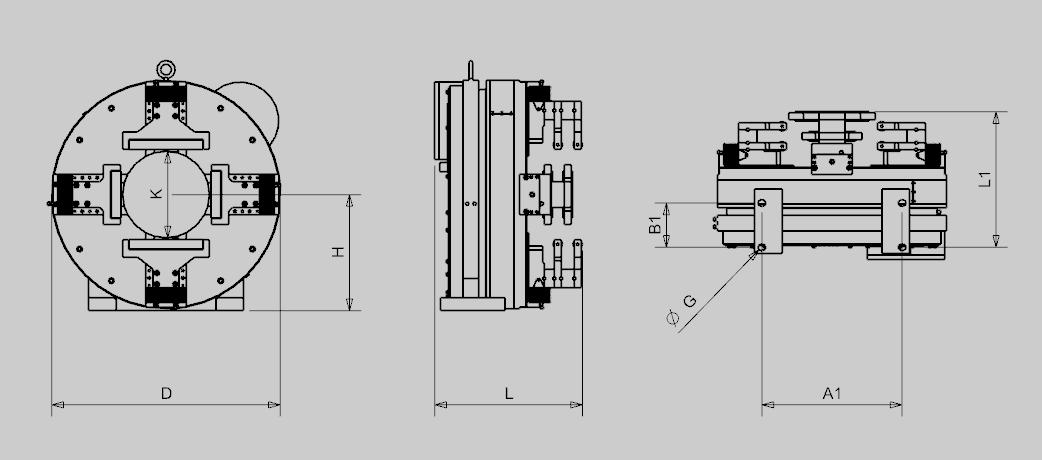

型號 Model number | 總質量Mass. | 旋轉 慣量 Inertia | 載重 能力 Load bearing | 氣壓范圍 Barometric pressure | 最高轉速 Maximum speed | 夾持范圍 Gripping range | A1 | B1 | D | K | G | H | L | L1 |
| kg | Kg*M2 | KG | Mpa | r/min | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
YJK120S | 106 | 2.2 | 100 | 0.25-0.8 | 200 | 8-120 | 370 | 80 | 440 | 130 | 18 | 235 | 282 | 163 |
YUK220S | 220 | 7.5 | 220 | 0.25-0.8 | 150 | 8-220 | 380 | 120 | 620 | 230 | 18 | 315 | 334 | 273 |
